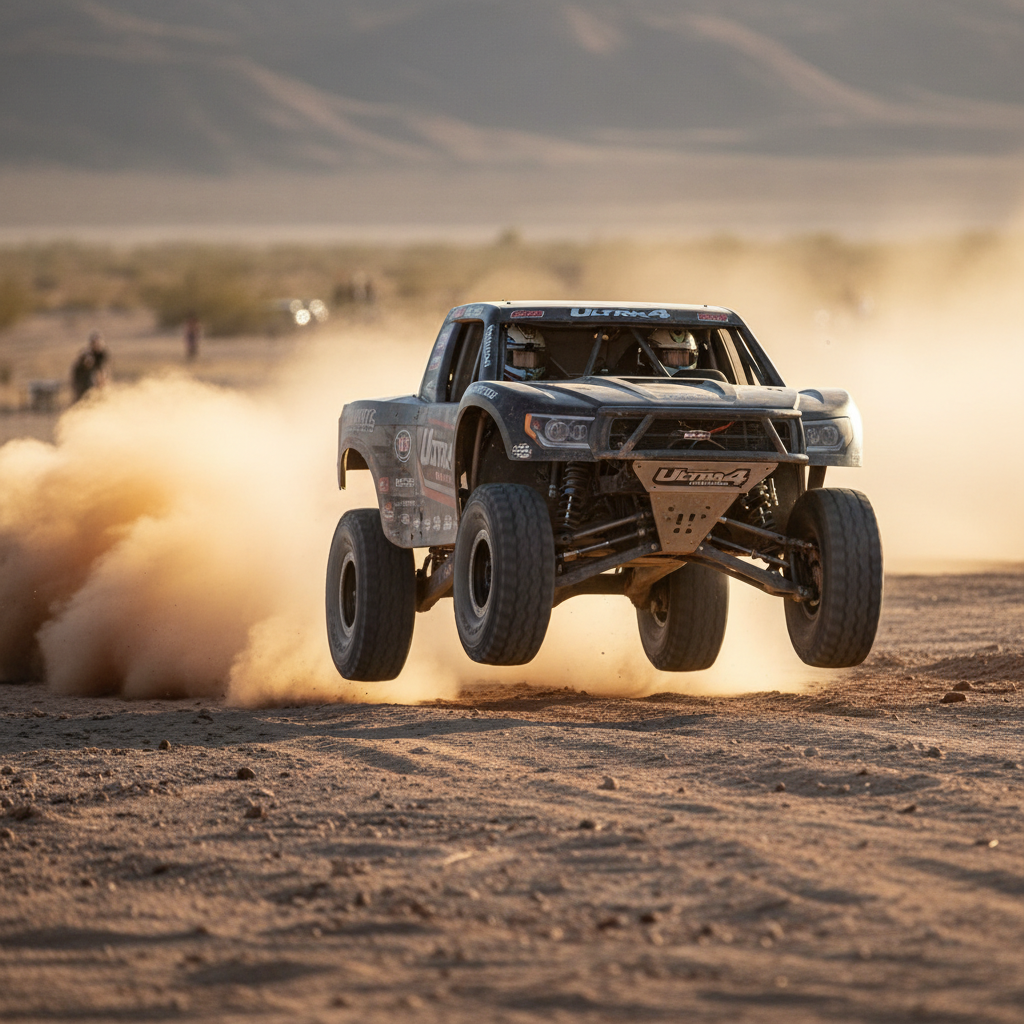

The King of the Hammers (KOH) is not just a race; it's an engineering crucible. While the sheer power of a 4400-class Ultra4 machine is undeniable, true dominance hinges on its ability to articulate, absorb, and maintain traction across a bewildering array of obstacles, from high-speed desert whoops to vertical rock climbs. A recent piece from DrivingLine, 'No Limits: The Differences in 4400 Class Suspension,' rightly underscores that within this seemingly singular class, suspension philosophy is incredibly diverse and constantly evolving.
Unlike traditional desert racing Trophy Trucks, which prioritize high-speed stability and massive travel for sustained abuse, 4400-class vehicles must balance this with extreme articulation and low-speed rock crawling prowess. This dual mandate leads to fascinating variations in suspension design. We see everything from highly sophisticated independent front suspension (IFS) setups, often paired with a solid axle rear, to full solid-axle configurations front and rear. Each choice represents a calculated trade-off.
IFS systems, typically employing A-arms and coilover shocks with bypasses, excel in soaking up high-speed desert chop and maintaining steering precision. Their independent wheel movement reduces unsprung weight and allows for greater compliance over uneven terrain. However, achieving the necessary articulation for technical rock crawling with IFS can be a challenge, often requiring extensive custom fabrication and careful geometry tuning to prevent binding or excessive CV joint angles.
Conversely, solid-axle designs, whether front or rear, offer inherent advantages in rock crawling. Their simplicity and robust nature allow for immense articulation and strength, crucial for navigating the infamous Hammers trails. Multi-link setups, commonly 3-link or 4-link designs with panhard bars or wishbones, are standard, allowing for precise axle location and tunable anti-squat/anti-dive characteristics. The trade-off here often comes in high-speed performance, where solid axles can be less forgiving over repetitive bumps and contribute to a higher unsprung mass.
The most successful teams often blend these philosophies. Many opt for an IFS front for desert speed combined with a solid axle rear for rock crawling traction and durability. The choice of shocks—whether 2.5-inch or 3.0-inch diameter coilovers, often supplemented with multiple bypass shocks per corner—is equally critical, with custom valving and spring rates tailored to specific driver preferences and course demands. The DrivingLine article serves as a timely reminder that in the 4400 class, there's no single 'right' answer, only highly specialized solutions forged in the crucible of Johnson Valley.
